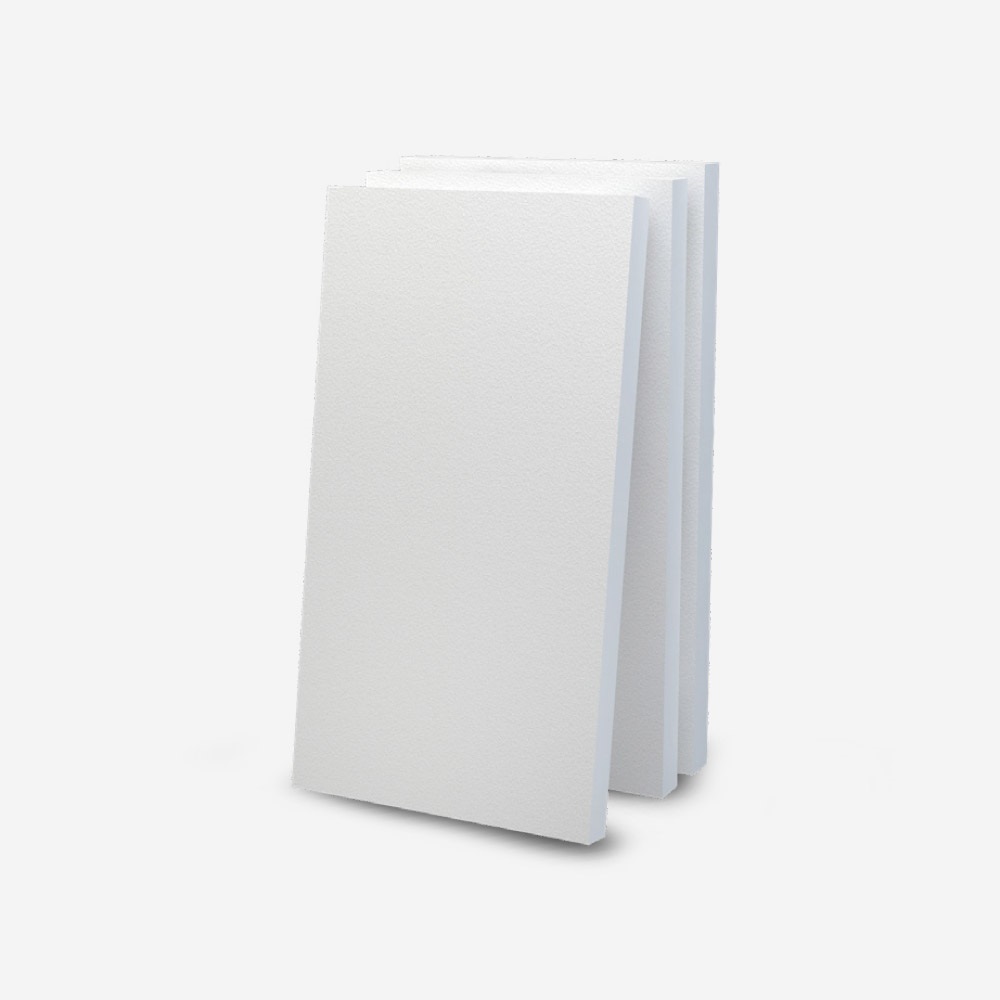

EPS (expanded polystyrene thermoplastic) is a thermal insulation material consisting of 98% still dry air which is made by inflating and fusing the closed pore polystyrene grains with superheated vapor. EPS is the most economic and high-performance thermal insulation material among other thermal insulation materials in the world.
These can be produced in any density and size from 16 kg/m3 to 30 kg/m3 upon customer request in accordance with TS EN 13163+A1 standard of 02.04.2015.
It is made of class E flameproof material in accordance with TS EN 13501-1.
It has a thermal conductivity of 0.035 to 0.038 W/m.k.
It has an infinite life.
Additionally, the EPS White Sheet coating system provided by our company complies with B-s1, d0 criterion set out in Schedule 1 to TS EN 13501-1 of April 2013.
| TEST | EPS White Sheet | ||
| Density | 16kg/m3 | 20kg/m3 | 22kg/m3 |
| Length | L3 | L3 | L3 |
| Width | W3 | W3 | W3 |
| Thickness | T2 | T2 | T2 |
| Deviation from Squareness | S5 | S5 | S5 |
| Smoothness | P10 | P10 | P10 |
| Thermal Conductivity | 0,038 | 0,036 | 0,035 |
| Thermal Resistance | 1,32 | 1,48 | 1,48 |
| Dimensional Stability | DS(23,90)1 | DS(23,90)1 | DS(23,90)1 |
| Bending Strength | BS 100 | BS 135 | BS 135 |
| Reaction to Fire | E | E | E |
| Type | EPS 60 | EPS 60 | EPS 60 |
